5''Tablet pc
5''Tablet pc
5''Tablet pc
5''Tablet pc -
5''Tablet pc
- Size:135mmx90mmx20mm
- Model:F1/F1S
- Brand :Higole/ODM
The Industrial Tablet is used for office and entertainment. It is widely applied for training center, finance(POS,fingerprint sensor, tax printer), industrial control, software maintenance and catering service.
The most powerful Mini PC!
Fanless, in a metal slate case
Energy efficient, less than 3 watts. It could replace a big desktop PC for a 24/7 dedicated task, reducing the electric bill.
Application
Secure Internet Kiosk, Meeting room, Digital signage, Embedded system, Thin client, 3D Printing...........
Software: Windows 10 / Android 5.1
Specifications
Display: 5 inch 720*1280 IPS G+P
Processor: Intel Cherry Trail Z8350 1.44~1.92GHz Quad Core
Memory(RAM): 4GB DDR3
Storage: 64GB/128GB eMMC
Ethernet:RJ-45 100Mbps
Wireless : wifi 2.4GHz+5GHz, Bluetooth 4.0
I/O Ports: 1xHDMI, 3xUSB 2.0, 1xUSB 3.0, 1x micro SD card slot, 1x earphone
AC adapter: 5V/3A
Size: 135X97.6X21 mm
Weight: 0.74KG
warranty: 1 year
Product features
● Adopts Intel Cherry trail T3(Quad-core) Z8350 design；
● Combine the advantages of tablet, smart box and Mini PC；
● Built-in with 5” IPS screen. Handle by finger directly；
● Built-in with high volume battery 2600mAh；
● Turn off the screen, and the power consumption is less than 1KW/H even the device is on；
● Pre-install legal Windows 10；
● 3 ways to mount: wall-mounted, panel-mounted or embedded；
● Recreation and Entertainment, everything is possible；
Product specification
Specifications | ||
| Type | Details | Description |
| LCD | Screen Size | 5" |
| Screen Resolution | 720*1280IPS | |
| Battery | Type | Li-polymer 3.7V2600mA |
Hardware Configuration | ||
| Type | Details | Description |
| CPU | Type | Intel Cherry trail T3(Quad-core )Z8350 |
| Frequency | 1.44 ~1.92GHz | |
| GPU | Type | Intel Gen 8-LP |
| Multimedia support hardware decoder | Pictures | BMP, JPG, GIF, PNG |
| Video | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (Need license) | |
| RAM | DDR3 | 4GB LPDDR3 |
| ROMFlash | Nand Flash | 64GB |
Network Connections | ||
| Type | Details | Description |
| WIFI | WIFI Module | 2.4GHz/5GHz 802.11a/b/g/n+BT 4.1 0 |
| 3G | External | 3G Dongle (WCDMA/EVDO/TD-SCDMA（可選）) |
| Ethernet | Ethernet RJ45 | Support 100Mbps |
I/O | ||
| Type | Details | Description |
| TF Card Slot | Expand External Storage | Support 64GB TF card |
| USB Port | Expand External Storage and Data Transmission | HOST female port*4（USB3.0*1，USB2.0*3） |
| Earphone Jack | Audio Output and Microphone Input | ∮3.5mm standard earphone jack (with microphone) |
| HDMI Port | Video and Audio Output | HDMI A Type |
| Keyboard | Input Device | USBkeyboard( support wired and wireless) |
| Mouse | Input Device | USBmouse( support wired and wireless) |
Standard Accessories | ||
| Type | Details | Description |
| Adapter | Standard | 5V/3A |
Software configuation | ||
| Type | Details | Description |
| OS | OS Version | Windows 10 & Android 5.1 Dual OS |
| Language | Multilanguage (Default in English ) | |
| FLASH | FLASH(support hardware decode), FLASH 11 | |
| HTML5 | Support | |
| OS APPS | Preinstalled APPS | SupportOffice word 、Excel、 PPT、 PDF |
| ES File Explorer | ||

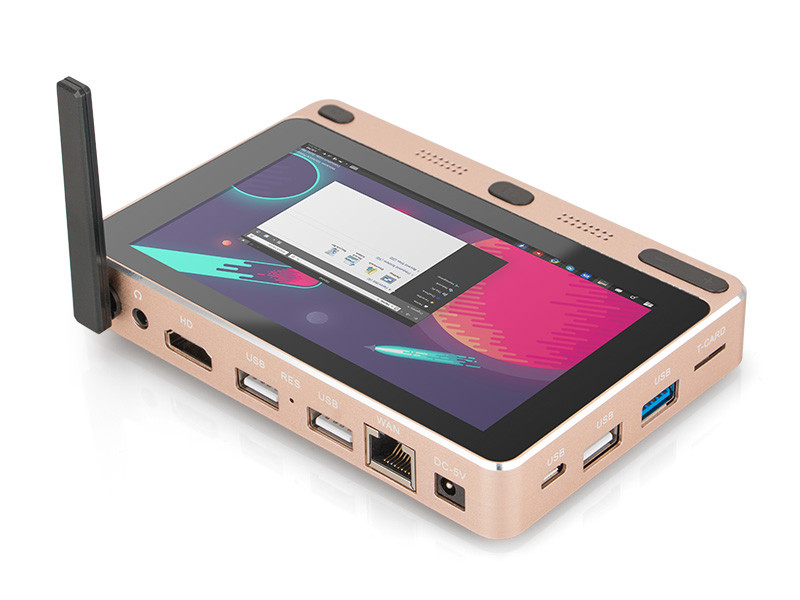

Product interface
